Agriculture Machinery
Diamond Flour Mill
Rs 50000 - 185000
Ex-Bhaktapur. Delivery, installation and training quoted with the machine.
- Output
- 10 - 90 kg/hr
- Dimensions
- 10 in - 18 in
- Power
- 2 HP - 10 HP
What it produces
Rated at 10-90 kg per hour
Per day
—
Per month
—
Per year
—
An estimate from the rated figure above, not a guarantee — real output depends on the material, the operator and the power supply. Ask us what to expect.
About this machine

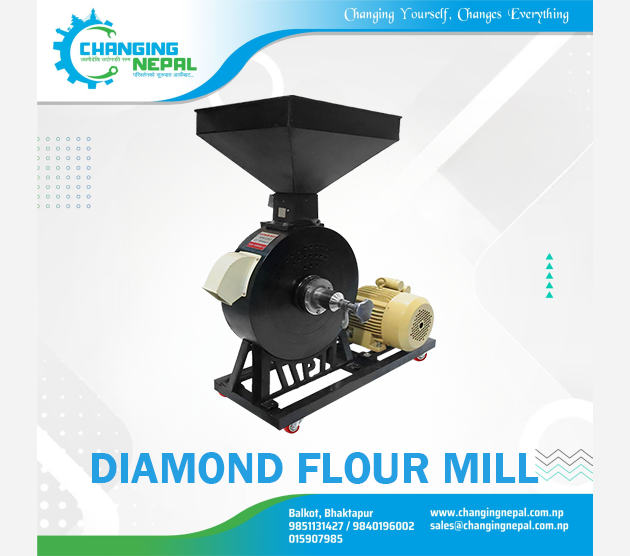

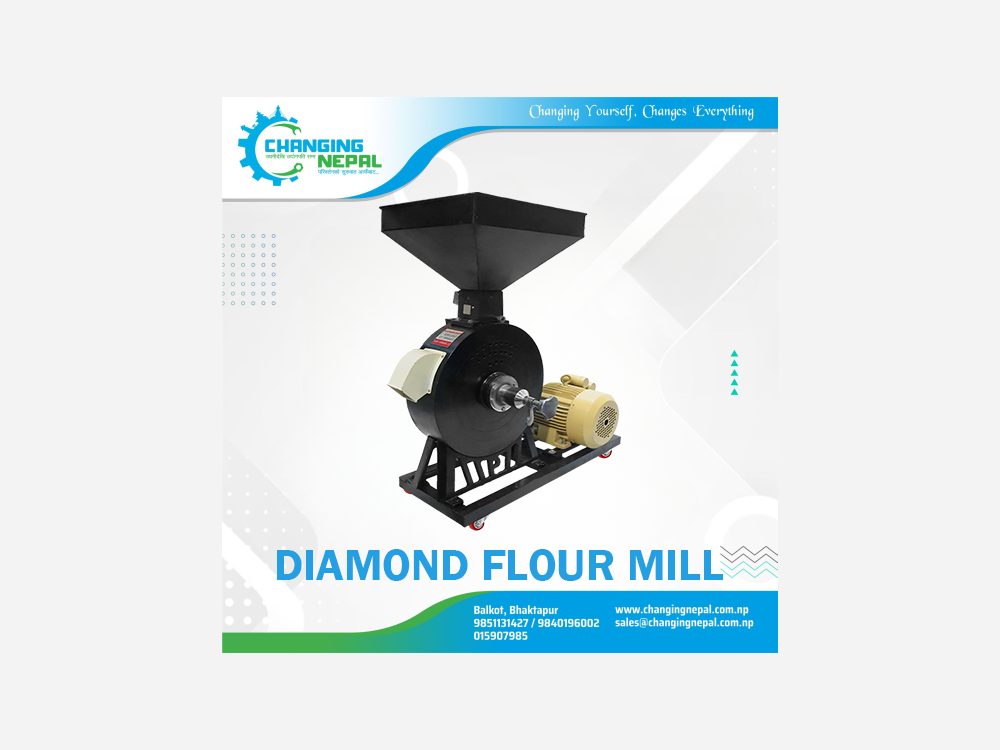

Diamond Flour Mill is a heavy-duty commercial grinding machine designed for grinding wheat, maize, rice, pulses, spices, and other dry food materials. It comes with a casting body and diamond cutter stone, making it strong, durable, and suitable for regular commercial use.
This flour mill is available in different models from 10 inch to 18 inch, so customers can choose according to their production capacity, motor requirement, and business size.
10” Diamond Flour Mill
The 10” Diamond Flour Mill is suitable for small-scale commercial grinding work. It is a good option for small flour mills, local shops, and businesses that need regular but lower-capacity grinding.
- Stone Size: 10 inch
- Capacity: 11–15 kg per hour
- Body Type: Casting body
- Stone Type: Diamond cutter stone
- Recommended Motor: 2–3 HP
- Motor Cost: Around NPR 14,000 to 19,000
- Machine Cost: NPR 50,000
12” Diamond Flour Mill
The 12” Diamond Flour Mill offers better production capacity than the 10” model. It is suitable for medium-level grinding needs and can be used by small commercial flour mills and food processing shops.
- Stone Size: 12 inch
- Capacity: 16–20 kg per hour
- Body Type: Casting body
- Stone Type: Diamond cutter stone
- Recommended Motor: 3–5 HP
- Motor Cost: Around NPR 18,000 to 57,000
- Machine Cost: NPR 65,000
14” Diamond Flour Mill
The 14” Diamond Flour Mill is a stronger model suitable for commercial grinding businesses that need higher output. It works well for regular flour, grain, and spice grinding.
- Stone Size: 14 inch
- Capacity: Around 30–35 kg per hour
- Motor Type: Single phase or three phase
- Motor Options: 5 HP single phase motor or 7.5 HP three phase motor
- Body Type: Casting body
- Stone Type: Diamond cutter stone
- Motor Cost: Around NPR 35,000 to 80,000
- Machine Cost: NPR 75,000
16” Diamond Flour Mill
The 16” Diamond Flour Mill is suitable for heavier commercial use and higher production. It is a good choice for established flour mills and food processing units that need continuous grinding performance.
- Stone Size: 16 inch
- Capacity: Around 40–50 kg per hour
- Recommended Motor: 5 HP three phase motor
- Best Motor Option: 10 HP motor for better performance
- Body Type: Casting body
- Stone Type: Diamond cutter stone
- Motor Cost: Around NPR 35,000 to 100,000
- Machine Cost: NPR 95,000
18” Diamond Flour Mill
The 18” Diamond Flour Mill is the largest model in this list and is suitable for high-volume commercial grinding work. It is recommended for businesses that need stronger output and long-hour operation.
- Stone Size: 18 inch
- Body Type: Casting body
- Stone Type: Diamond cutter stone
- Use: Heavy commercial flour and grain grinding
- Machine Cost: NPR 185,000
See it running
