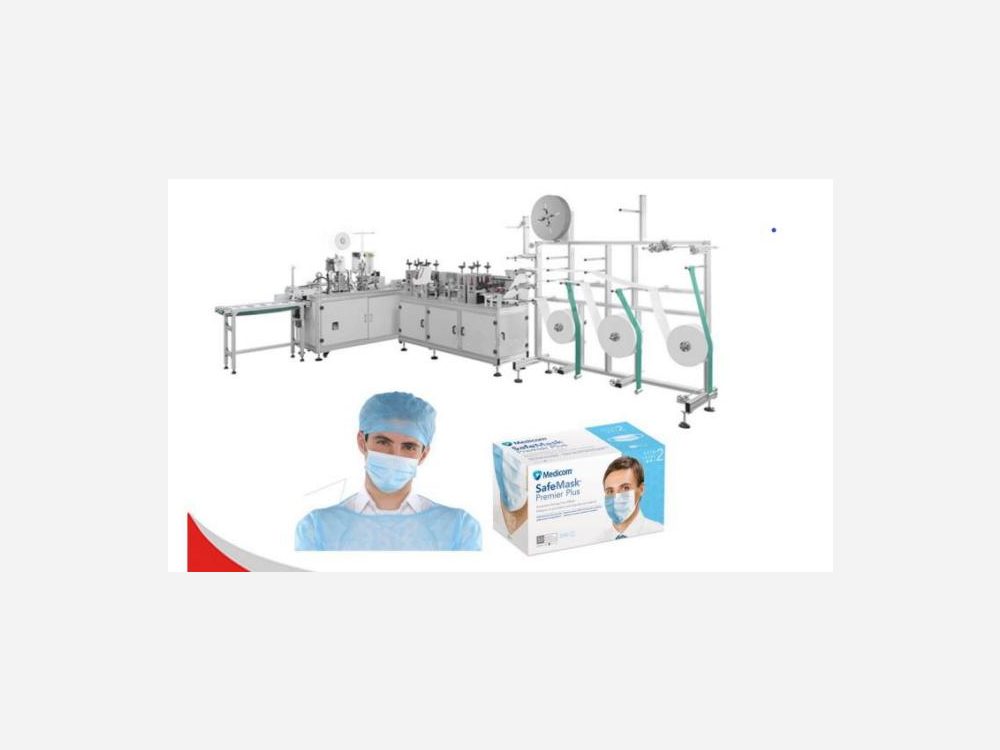

The production process of the equipment is suitable for flat face mask with external ear band of less than 4 layers (without edge sealing). The size of the mask is as follows:

17.5cm × 9.5cm (adult)

Note: introduction to plane mask

1) The face mask is divided into 2 layers of non-woven cloth mask, 3 layers of non-woven cloth mask and 4 layers of activated carbon mask

2) Flat mask raw material: 2-layer mask: non woven fabric, nose rib, ear hook

3) 3-layer mask: non woven fabric, nose rib, ear hook, filter cotton (filter paper)

4) Activated carbon mask: non woven fabric, nose rib, ear hook, filter cotton (filter paper), activated carbon cloth

Machine size (mm): 4200 (L) × 3600 (W) × 1900 (H)

Total weight: 2000kg

Mask size: 17.5 × 9.5cm (adult)

To replace the tray to adapt to 17.5 × 9.0CM size mask

Suitable for compressed air: 0.6 ~ 0.8 MPa

Voltage: 50 / 60Hz AC220V (two phase)    Power: 6kw

Whole line efficiency: ≥ 45-55pcs / min   Equipment yield: ≥ 95%

The required temperature of production environment is 10 ~ 35

Humidity 35 ~ 65% HR        No combustible and corrosive gas

No dust (cleanliness no less than 100000)    Ultrasonic: 20kHz, 1.5KW power, long wave, AC220V

- 2 sets (for body processing)    20kHz, 1.5KW power, intermittent wave, AC220V

- 4 sets (for ear wire welding)        Welding strength: nose line length is not less than 8cm, and each mask belt is connected with the mask body.  The fracture strength of the joint is not less than 10N

Main brands used: Mitsubishi PLC, raycel, Xinjie, Zhongda, Omron, chnt

Thai, Welton, Mismi, yiheda, Shangyin, etc.

Feeding tray:

It can be used for 4 (or 3) rolls with a diameter of 600mm

Materials or 3 plates * with diameter of 1000mm are placed.
