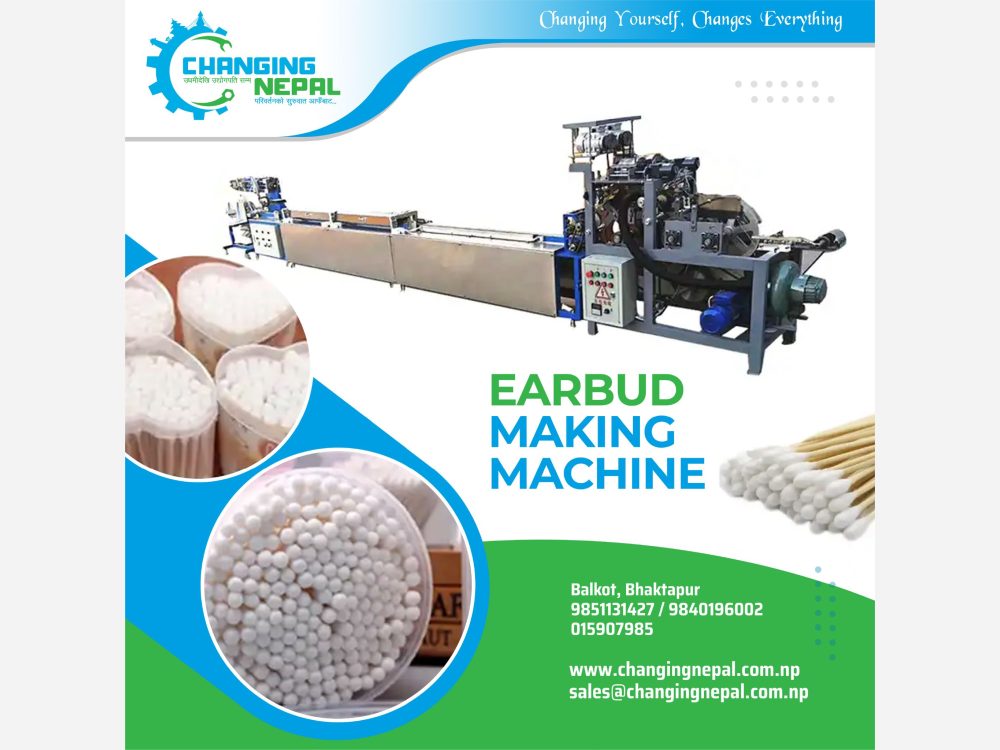

Ear Bud Making Machine
Ear Bud Making Machine
Rs 3000000

Category: Manufacturing & Production Machinery

Code: 113

Power / Voltage: 380V

The bamboo cotton swab usually has a diameter of 2.0mm and a length of 70mm

1. The process flow of the above products: raw bamboo - picking and sawing - cutting bamboo strips - knotting, width fixing and sheet opening - wire drawing - bleaching - drying - cutting, length fixing - polishing.

2. The above 7 sets are a production line to produce bamboo cotton swabs. The output is about 2 million pieces in 8 hours, about 250 kg. 3-5 operators are required to use 380v industrial power. The electricity consumption per hour is about 10 degrees, and the plant area can be large or small, generally about 100 square meters.

4. Generally, 100000 to 130000 bamboo cotton swabs with a diameter of 2.0mm and a length of 70mm can be produced per 100kg of fresh (wet) bamboo, and about 13-16kg of dry finished toothpicks can be produced.

Maximum stable speed

1160 pcs/min

Total power

14kw, 380v 3phase 50hz

Power consumption

14kw/hour

Yield

≥99.5%

Stick size (It can be customized)

Length:70mm(±2mm)

Diameter:2.0-2.5mm

Weight:1.6-2.5g

Type of stick

Plastic stick, Paper stick, wood stick , bamboo stick (Need to replace the rubber accessories)

Type of cotton buds

Single head

Double heads

Suitable cotton sliver

1.5g/m (According to the size of the head)

Machine Size(L*W*H)

9.1*0.9*1.75m

Machine Weight

2000kg

Packing Size(CBM)

 13
