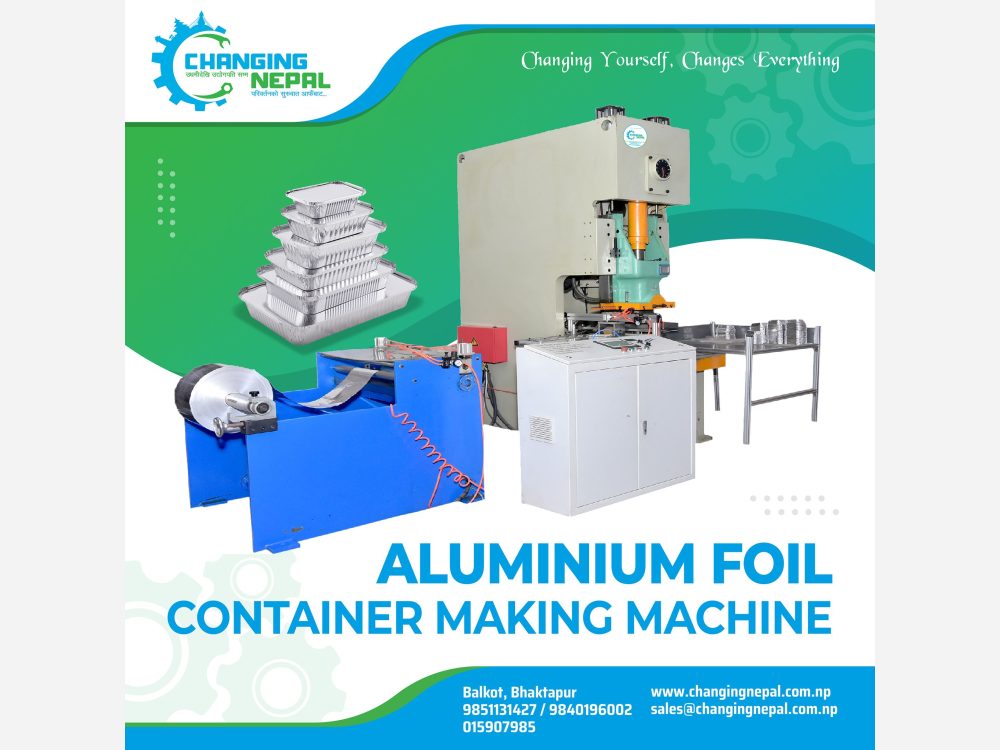

semi-auto production line include: decoiler and lubrication device, servo feeder, high precision punching machine

Pressure : 250 KN Stroke : 180mm Work Plate : 600x600mm Max Height of Mould : 490mm Stroke Hold Size : 145x320mm Work Plate Hole : 160x160mm Work plate Thickness : 50mm Dimension : 1050x1000x18000mm Motor Capacity : 4 Kw Production Capacity 50 Pcs/Min. Weight : 2.6 T

AUTOMATIC FEEDER Max. Foil Weight : 2T Max. Diameter : 1000mm Max. Foil Width : 580mm Speed : 10-60m/Min. Power : 1.5kw Dimension : 1690x960x1100mm Net Weight : 350 kg

Indian Aluminium Container Machine Double cavity Pressure : 450 KN Hole size of collection table : 300x300mm Board Thickness of collecting table : 55mm Max. Height of Mould : 290mm Slide Board Size : 220x400mm Size of Screw Hole of Mould : 60mm Size of collecting table : 600x100x50mm Dimension : 1500x1125x2315mm (LxWxH) Motor Capacity : 7Kw Production Capacity : 90-120 pcs./Min. Weight : 5000 Kg. capacity : 100-120 Pcs./Min (Depending on Mould & Dies Size)
